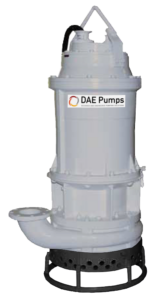

Payload Sand And Slurry Pump
Robust and Efficient Pumping Solutions
As the exclusive distributor of DAE Pumps in South Africa, Pump, and Dredge Africa proudly presents the Payload Electric Sand & Slurry Pump—an exceptional choice for reliable dredging and solids transport. This high-performance pump is built to handle tough conditions, with the capability to move up to 2,000 cubic meters of solids per hour. Its advanced design includes a non-clogging suction system, allowing it to manage solids up to 3.9 inches in diameter and transport up to 30% solids concentration through a 16-inch discharge.
The Payload electric slurry pump is part of the renowned DAE Pumps submersible sand and slurry pump lineup, offering versatility for various dredging tasks across South Africa. It can be tailored to meet specific project requirements, whether deployed by suspension or mounted on an excavator. Optional features, such as an agitator or water jetting ring, enhance its efficiency, making it ideal for handling organic materials like seaweed and grass, ensuring maximum suction power and optimal performance.
Custom Dewatering Solutions to Meet Your Requirements
Pump and Dredge Africa, the exclusive distributor of DAE Pumps in South Africa, provides pumps engineered for top performance, user-friendly operation, and low maintenance. Our pumps are built to deliver long-lasting durability and efficiency, featuring sealed, modular components that make operation and servicing straightforward. This thoughtful design guarantees dependable performance, enhancing productivity and ensuring a seamless user experience.
Essential Features of the Payload Electric Sand & Slurry Pump
- Highly Durable and Abrasion Resistant Dredge Pump
- Multiple Size Pump Options: 3″, 4″, 6″, 8″, 10″, 12″, 14″, and 16″
- Capacity: Up to 2000 Cubic Meters Per Hour
- Solid Handling: Pumps up to 30% Solids
- Operational Depth: Up to 250 meters
- Robust Electric Motor: Provides strong torque and long life
Specifications
- Max Capacity: 2860 GPM (650 m³/h)
- Max Head: 89.5’ (27m)
- Impeller Diameter / Type: 16” (405mm) / 3 Blades Closed
- Discharge Size: 12” (300mm)
Solid Handling: 3.6” (90mm)
Materials
- Casing: Spheroidal Cast Iron EN-GJS500-7 (EN 1563)
- Motor Housing: Cast Iron EN-GJL-250 (EN 1561)
- Wear Parts: High Chrome EN-GJN-HV600 (XCr18) (EN 12513)
- Main Shaft: High Tensile Steel 39NiCroMo3 (AISI 9840)
Motor
- Motor Displacement: 9.8 cu. Inch (160 cc)
- Max. Oil Flow Rate: 72 GPM (270 l/min)
- Max. Pressure: 4351 PSI (300 bar)
- Power: 185 HP (475 kW)
Speed: 1450 RPM
Seals / Lubricant
- Motor Side Seals: 2 Lip Seals (BUNA)
- Impeller Side Seals: 5 Lip Seals (3 BUNA + 2PTFE) + 1 V-ring (TPU)
Oil type: ISO 320
Related Equipment
Dewatering Pumps
Scroll around on our complete range of the dewatering pumps that are appropriate for various applications such as irrigation, fountains, and liquid transfer works across South Africa. The pumps known for top-tier performance will ensure you have a streamlined, profitable and need efficient pumping of water in every operation undertaken.
We are authorized distributors for
Are you in need of the best pump and dredge equipment for your industrial activities?
Email us today at sales@pumpanddredgeafrica.com
