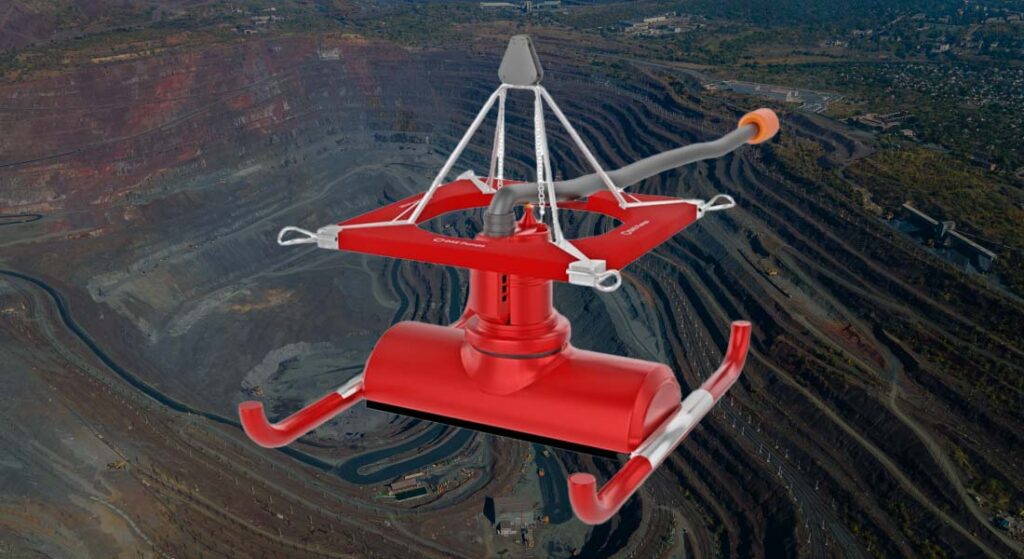

A-Frame Mini Dredge

Introduction and Key Benefits

As the sole distributor of DAE Pumps in South Africa, Pump, and Dredge Africa offers the A-Frame Mini Dredge, a versatile and efficient solution for removing silt, sediment, sludge, and sand from various bodies of water, including lakes, ponds, lagoons, rivers, and canals. This manual pulley-driven dredge system is designed to increase water depth, allowing boats better access to docks and improved navigation through shallow waterways. It also enhances the visual appeal and size of small ponds and lakes, providing a simple and cost-effective solution for a wide range of dredging applications.

Main Components and Features

DAE Pumps Submersible Slurry Pump: At the heart of this system is the DAE Pumps submersible slurry pump, known for its strength, reliability, and durability.

As distributed exclusively by Pump and Dredge Africa, these pumps are specifically built to handle abrasive materials like sand and sediment. Constructed from high-chrome metal, the pump is designed to withstand the toughest dredging conditions. Its heavy-duty impeller, volute, and casing ensure long life and consistent performance, making it the perfect choice for challenging dredging projects in South Africa.

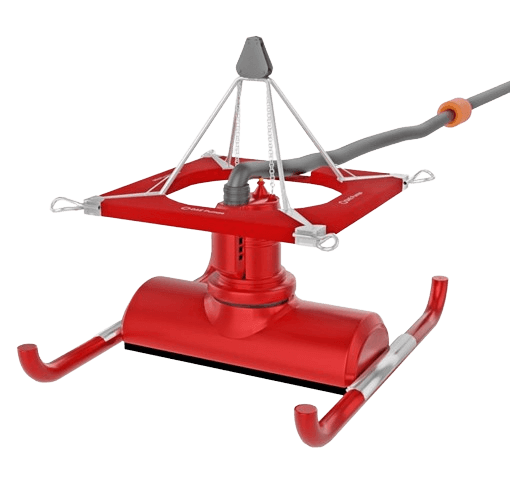

A-Frame Raft System: The A-frame raft system supports the submersible pump, keeping it at the proper depth during dredging operations. This foam-filled raft is built for durability, providing both stability and easy maneuverability. The adjustable chain support allows precise control over the pump’s height, enabling efficient dredging results tailored to each specific project.

Complete Pulley Dredge Kit:The pulley dredge kit includes everything needed for efficient dredging operations, distributed by Pump and Dredge Africa. The kit comes with double-braided nylon rope, heavy-duty stakes and pulleys, a high-strength chain, and connection links. Lay-flat slurry hoses and flotation devices are also available to complete your setup. For more comprehensive sediment control, straw wattle and stakes can be added to the package.

This exclusive partnership between Pump and Dredge Africa and DAE Pumps ensures that customers in South Africa receive the highest quality dredging solutions designed for efficiency and reliability across various projects.

Get Your DAE Pumps A-Frame Mini Dredge Today!

Enhance the efficiency of your dredging projects with the DAE Pumps A-Frame Mini Dredge, which is expertly designed to remove silt, sediment, sludge, and sand. This powerful system is ideal for deepening waterways and improving the appearance of small ponds and lakes.

Pump and Dredge Africa, the sole distributor of DAE Pumps in South Africa, provides local support and ensures immediate availability. Contact us today to request a quote and take your dredging operations to the next level!

Features

Pump

Non-Clogging Industrial-Grade: Pumps 15% – 30% solids
High Abrasives Material: Handles sand and sediment
Built of High Chrome Metal: Low maintenance

Raft

Durable and Lightweight
Supports Heavy Weights
Oil Resistant: Polyethylene filled
Galvanized Steel Frame

Rope

Double Braided Nylon Rope
Minimum Break Load: 4400 lbs.

Eyelet Stakes

Heavy-Duty Metal

Pulley

Solid and Durable: For reliability and easy pulling

Tampa 455 Submersible Slurry Pump Kit

Motor: 7.5 HP
Capacity: 594 GPM
Material Movement: 35 to 45 cubic yards per hour
Protection: Ductile iron casing
Internal Components: Chromium iron impeller, wear plate, and agitator
Power Cord: 150-ft

Tampa 475 Submersible Slurry Pump Kit

Motor: 10 HP
Capacity: 655 GPM
Material Movement: 40 to 50 cubic yards per hour
Protection: Ductile iron casing
Internal Components: Chromium iron impeller, wear plate, and agitator
Power Cord Options: 150-ft or 300-ft

Tampa 4110 Submersible Slurry Pump Kit

Motor: 15 HP
Capacity: 819 GPM
Material Movement: 55 to 65 cubic yards per hour
Protection: Ductile iron casing
Internal Components: Chromium iron impeller, wear plate, and agitator
Power Cord Options: 150-ft or 300-ft

Related Equipment

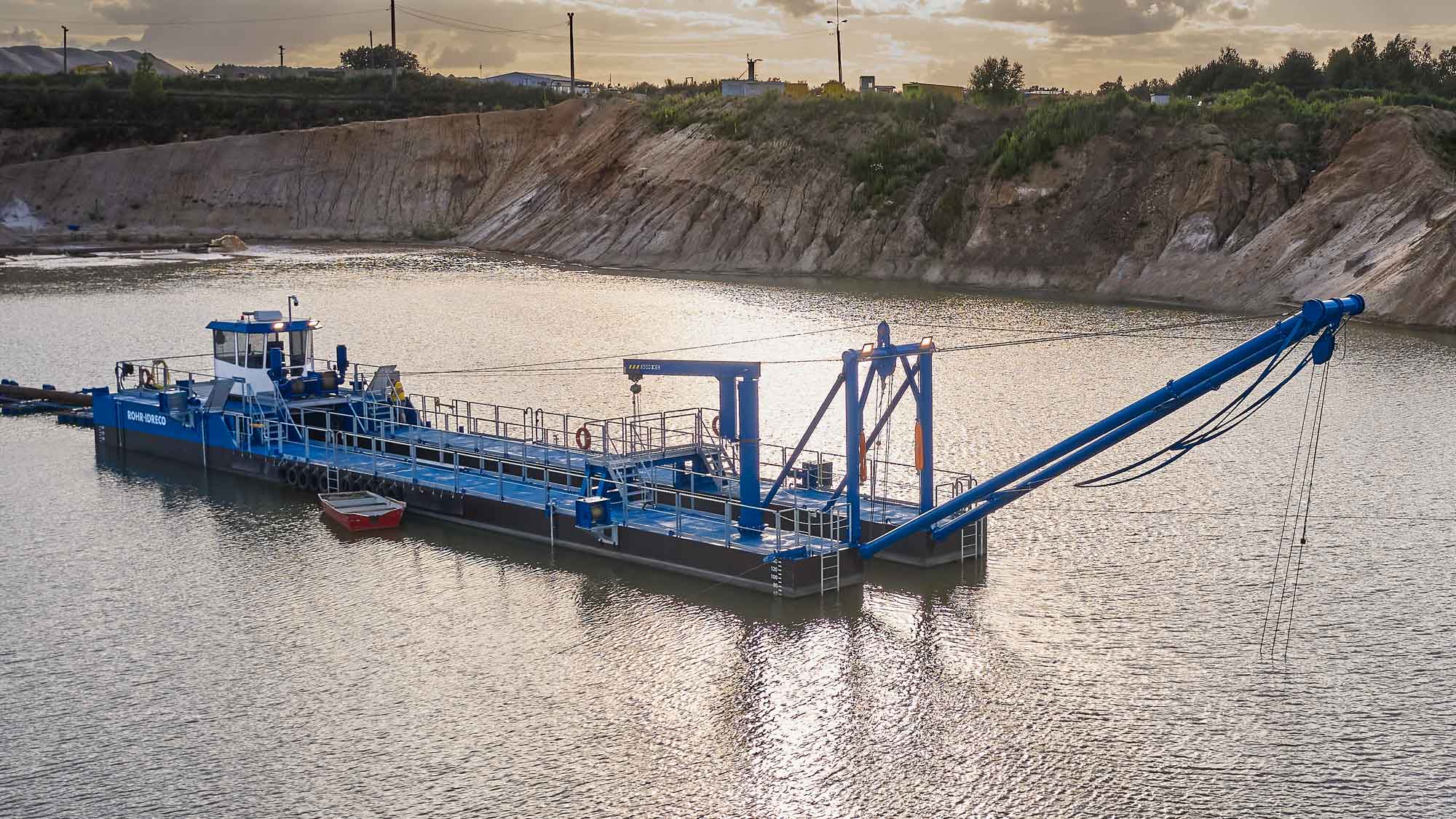

Dredging Equipment
