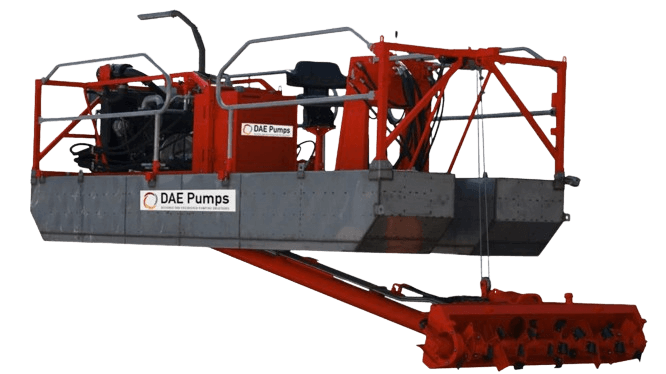

Sediment Slayer Pond Dredge

Robust and Efficient Design

The Pump and Dredge Africa Sediment Slayer Pond Dredge is the most powerful two-person dredge available, designed for maximum efficiency, ease of use, and superior safety features. Compact yet robust, it is equipped with a 6-inch hydraulic submersible pump and a wide cutter head, enabling it to access areas that larger dredging machinery cannot reach.

This makes the Sediment Slayer an ideal choice for dredging a variety of water bodies such as homeowners association lakes, marinas, golf course ponds, and lagoons. Known for its exceptional power and efficiency, the dredge is equipped with a high-torque, direct-drive cutter head that ensures the effective removal of sediment while maintaining top-tier safety standards.

Powerful Performance and Durability

The 6-inch submersible pump is specifically built to withstand abrasion and prevent clogs, capable of moving up to 1500 GPM and handling debris as large as softballs. The dredge’s sturdy pontoons and secure platform provide a stable and safe environment for operation, ensuring reliable performance even in challenging conditions.

Mobility and Fuel Efficiency

The Sediment Slayer is not only powerful but also highly mobile and fuel-efficient. Its lightweight design allows for quick launching and retrieval from its trailer without damaging shorelines or leaving any marks. Powered by a 65-horsepower, 4-cylinder Cummins diesel engine, the dredge operates efficiently with a 30-gallon fuel tank, allowing for up to 10 hours of continuous operation while consuming just 3 gallons per hour of fuel.

This combination of power, efficiency, and mobility makes the Sediment Slayer Pond Dredge an essential tool for maintaining smaller water bodies while minimizing environmental impact. Contact Pump and Dredge Africa, the exclusive distributor of DAE Pumps in South Africa, to learn more and request a quote today!

Get Your Sediment Slayer Pond Dredge Today!

Pump and Dredge Africa, the sole distributor of DAE Pumps in South Africa, is ready to meet all your dredging needs. Contact us today to learn more about the powerful DAE Pumps Sediment Slayer Pond Dredge and discover how it can transform your operations. Request a quote now and take control of your dredging projects with confidence, backed by a top-tier, efficient solution.

Features and Specifications

Compact and Easy to Operate: Designed for two-person operation, ensuring simplicity, efficiency, and ease of use.
Heavy-Duty 6-Inch Submersible Pump: Equipped with a non-clogging suction system for consistent and reliable performance, even in tough dredging conditions.
Extra-Wide Cutter Head: Features excavator-grade teeth that ensure effective and thorough sediment excavation, making it ideal for a variety of dredging tasks.
Durable Pontoons: Built with two sturdy pontoons, each with multiple compartments to enhance stability and safety during operation.
Ultra-Powerful Diesel Engine: This ultra-powerful engine delivers exceptional performance, easily handling the most demanding dredging tasks.
Small Environmental Footprint: Engineered to minimize its impact on the surrounding environment, ensuring responsible and sustainable dredging.

Specifications

Length: 22 ft
Width: 71 inches (5′ 11″)
Height: 64 inches (5′ 4″)
Discharge Diameter: 6 inches
Horsepower: 65 HP @ 2800 RPM
Fuel Capacity: 30 gallons
Working Depth: Up to 13 feet
Performance: Maximum flow of 1500 GPM; 1,100 GPM @ 50 ft TDH
Flotation: Two pontoons measuring 26″ x 22″ x 192″

Travel System: Double pulley hydraulic windlass with two hydraulic motors
Cutter Head: 66″ wide with a 14″ diameter, powered by a variable speed dual hydraulic motor with direct drive
Cut Width: 66 inches
Engine: Cummins 4-cylinder diesel engine
Instrumentation: Includes tachometer/hour meter, slurry pump hydraulic pressure gauge, cutter head hydraulic pressure gauge, and discharge pressure gauge

Standard Floating Discharge Package (Approx 220’ on the Water)

7 – 6” SBR 150 psi Discharge Hose Assembly x 15ft long
1 – 6” HDPE pipe assembly x 13ft long with 6” x 10ft HDPE float
5 – 6” HDPE pipe assembly x 20ft long with 6” x 13ft HDPE float
1 – 6” 45-degree adapter
1 – 6” 90-degree adapter
15 – 6” eccentric clamp, stainless locking loop
Additional floating is also available.

Standard Travel Package

1000ft of 1/4″ Galvanized Aircraft Cable
4 – 6’ x 1” Nylon Slings
20 – ¼” Crosby Clips
16 – Stakes
2 – Cable Pullers (Cable Come Along)
4 – Stake Plates
10 – Shackles
8 – ¼” Wire Rope Thimbles

Custom Trailer with Pipe Rack

The Sediment Slayer Pond Dredge comes with a custom trailer that features an innovative pipe rack designed to neatly consolidate the dredge and discharge pipe into a single, easy-to-manage package. This practical rack is designed for tool-free removal, offering added flexibility and convenience. Additionally, the trailer includes a spare tire mount, ensuring you’re fully prepared for any situation and providing peace of mind during transport and operation.

Optional Cutter Head Wheels

For added versatility, optional cutter head wheels are available for the Sediment Slayer Pond Dredge. These wheels make the dredge especially suitable for operations in sand-lined lagoons, allowing it to work efficiently while preserving the integrity of the lagoon lining. This feature ensures that the dredge can adapt to a variety of environments, making it a flexible solution for diverse dredging needs.
