Efficient sand dredging is crucial for maintaining navigable waterways and supporting infrastructure projects. Over time, sediment buildup in rivers, lakes, and harbors can obstruct water flow, reduce water depth, and create challenges for shipping, irrigation, and environmental health. Dredging removes this accumulated sand and sediment, restoring waterway capacity and improving overall water management. Proper sand dredging also supports construction and mining projects by supplying high-quality sand for concrete production, land reclamation, and other industrial uses.
Optimized sand dredging equipment improves material recovery and operational efficiency. High-performance dredging systems can handle large volumes of sand while maintaining consistent flow and suction rates, reducing the chances of blockages and downtime. Well-calibrated pumps and properly aligned pipelines ensure smooth sediment transport, minimizing equipment wear and lowering maintenance costs.
Selecting the right dredging equipment is especially important for different types of environments. For instance, river sand dredging equipment must handle varying currents and diverse sediment compositions, which require stronger suction and higher-powered pumps. On the other hand, lake dredging equipment must provide stability and precision in still water, where fine sediment and plant material can cause blockages. Choosing the appropriate dredging solution ensures maximum efficiency and long-term operational success.

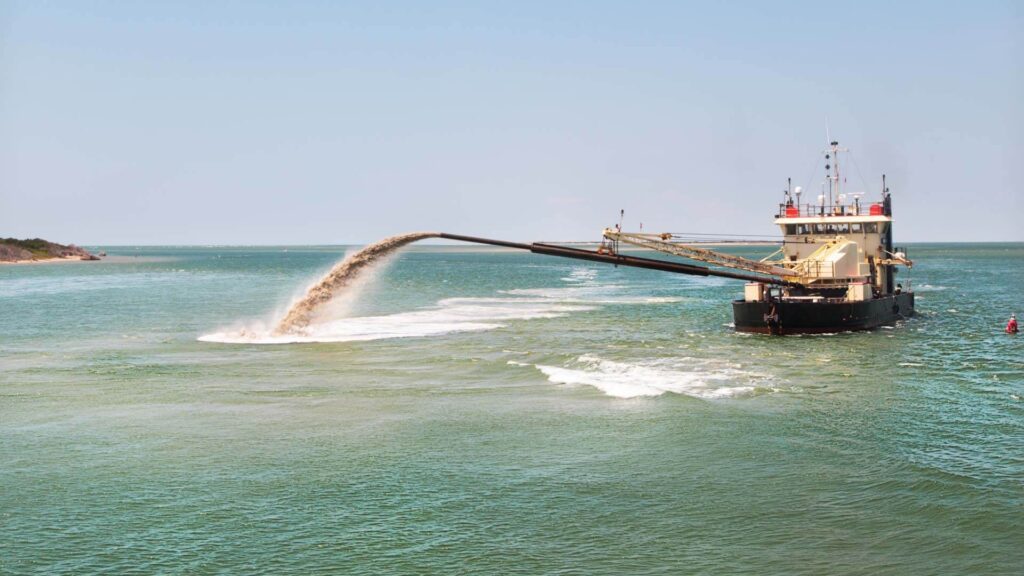

Understanding Sand Dredging Equipment and Its Role in Sediment Removal
Definition and Purpose of Sand Dredging Equipment
Sand dredging equipment is specialized machinery used to remove sand, sediment, and debris from the bottom of bodies of water such as rivers, lakes, and harbors. Its primary function is to maintain waterway depth, ensuring safe navigation for boats, ships, and other vessels. It also helps prevent flooding by managing sediment accumulation that could obstruct water flow. Sand dredging equipment is essential for keeping waterways operational and supporting projects like land reclamation, construction, and resource extraction.
Different dredging systems are designed to handle varying types of sand and sediment compositions found in different environments. For instance, river sand dredging equipment is specifically built to handle the challenges posed by strong river currents and the wide range of sediment sizes and densities. The equipment is often equipped with powerful pumps and specialized cutter heads to break up and remove compacted sand or gravel. In contrast, lake dredging equipment is typically designed for shallower, calmer waters, where fine sediments, organic matter, and plant debris are more common. This equipment is built for precision and minimal disturbance to the surrounding ecosystem, often featuring specialized pumps and suction systems for managing fine sand and silty deposits.
Importance of High-Volume Sediment Removal
Efficient sediment removal is essential for maintaining navigable waterways. Over time, sediment builds up, reducing water depth, which can cause blockages and disrupt navigation. This is especially problematic in rivers, where strong currents can carry large volumes of sand and debris. High-volume sediment removal helps maintain consistent water flow and ensures safe passage for vessels. Regular dredging reduces the risk of flooding, as accumulated sediment can limit the flow of water during heavy rainfall or snowmelt.
High-volume sediment removal also improves resource recovery and accelerates project timelines. For example, river sand dredging equipment can extract large quantities of valuable sand for construction and industrial uses, helping meet the demand for raw materials. Similarly, lake dredging equipment ensures the quick removal of excess sediment, allowing for more efficient land reclamation, habitat restoration, and infrastructure development. By using the right equipment and optimizing dredging processes, operators can improve project efficiency, reduce operational costs, and support long-term waterway health.

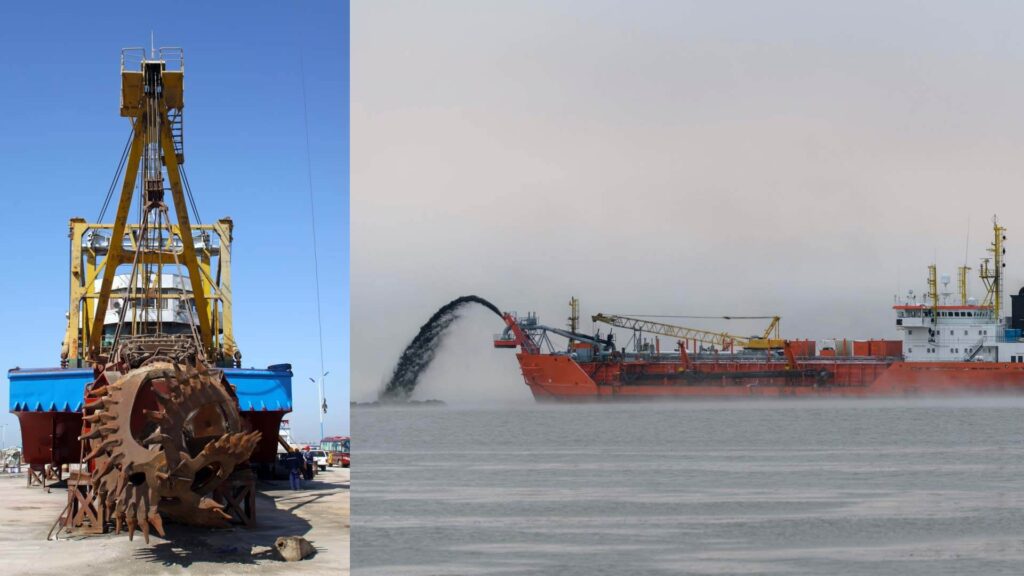

Types of Sand Dredging Equipment
Cutter Suction Dredgers
Cutter suction dredgers are ideal for handling hard and compacted sand. These dredgers are equipped with a rotating cutter head that breaks up sediment and makes it easier for the pump to suction the material into the pipeline. The cutter head design significantly improves sediment removal, especially in environments where the sand is compacted or mixed with gravel and other materials. By loosening the material before suction, cutter suction dredgers increase transport efficiency and reduce the strain on pumps. This makes them ideal for large-scale dredging projects, such as those in river channels or offshore sand extraction. Cutter suction dredgers are commonly used for high-density sand removal, ensuring high performance and minimal downtime.
Jet Suction Dredgers
Jet suction dredgers are highly effective for removing loose and fine sand in shallow water. They use high-pressure water jets to loosen and suspend sediment before it is sucked into the dredge’s pipeline. The water jet pressure enhances the sand collection process, making it more efficient by reducing blockages in the suction system. Jet suction dredgers are ideal for river sand dredging equipment because they can easily handle varying sediment compositions and depths found in rivers. They are also effective for shallow lake dredging equipment, where fine sand and silt need to be managed with minimal disturbance to the surrounding ecosystem.
Hopper Dredgers
Hopper dredgers are suitable for large-scale offshore and deepwater sand dredging. They are equipped with a hopper or storage hold where collected sand is deposited before being transported for disposal or use. Hopper dredgers are also equipped with advanced suction and collection systems that allow for efficient sediment removal from deep water. The onboard storage capacity improves operational efficiency by reducing the need for frequent disposal or relocation of dredged material. For offshore sand dredging projects, hopper dredgers are critical, as they can handle high volumes of material quickly and efficiently.
Auger Dredgers
Auger dredgers are ideal for precision dredging in confined or environmentally sensitive areas. The auger system rotates to grind and lift sediment without creating excessive turbulence, which minimizes the risk of spreading pollutants. Auger dredgers are often used in lake dredging equipment because they can remove sediment from still waters, such as ponds or lakes, with minimal environmental impact. The reduced turbidity ensures that aquatic ecosystems are less disturbed during sediment removal, improving overall dredging efficiency in delicate environments.
Specialized River Sand Dredging Equipment
River sand dredging equipment is designed to handle varying currents and sediment compositions found in river environments. These dredgers are equipped with durable pumps and specialized suction heads that can handle both coarse and fine sand, along with other materials like mud and gravel. The high-power suction systems ensure efficient removal and transport of materials, even in fast-moving river environments.
Specialized Lake Dredging Equipment
Lake dredging equipment is designed to remove sediment stable and consistently in still waters. These dredgers are typically equipped with floatation systems to maintain stability and minimize the risk of tipping. The floatation systems also help ensure efficient dredging in lake environments by providing steady support to the dredging unit. The stability of lake dredging equipment allows for precise dredging of fine sediments and organic material, making it ideal for maintaining water quality and restoring habitats.

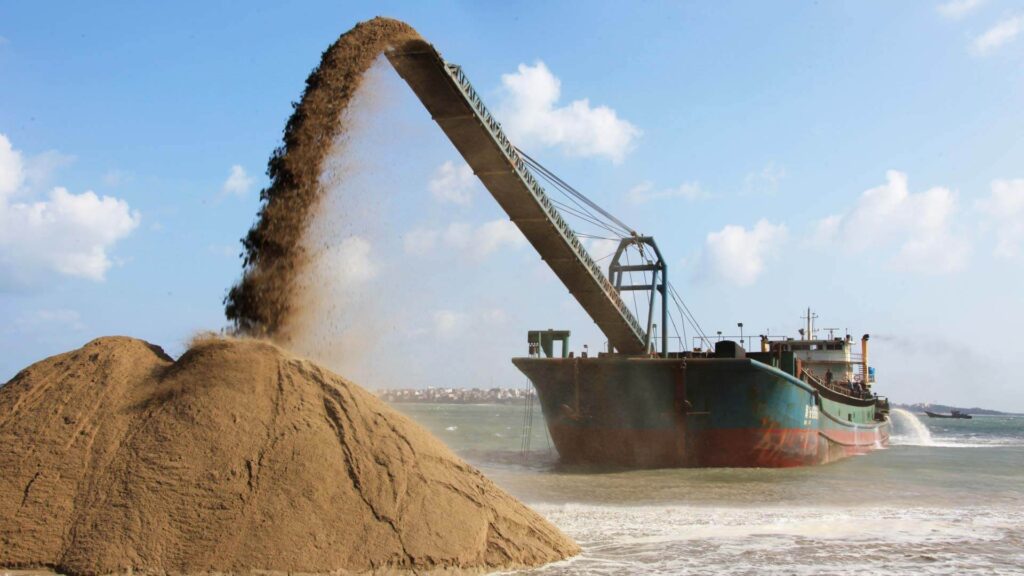

Key Factors Affecting Sand Dredging Efficiency
Sand Composition and Grain Size
The composition and grain size of the sand being dredged play a significant role in determining dredging efficiency. Fine sand, such as silt or clay, is easier to pump but can settle in pipelines if the flow rate is too low, causing blockages. Coarse sand, on the other hand, requires more power to lift and transport, as it has a higher resistance to flow. Mixed sand compositions with varying grain sizes can create additional challenges, as the suction power must be strong enough to handle both fine and coarse particles. To improve dredging efficiency, sand dredging equipment must be adjusted based on the texture of the sand. For instance, increasing suction power and adjusting the pump settings for coarse sand can help reduce operational interruptions and maintain a consistent flow rate. Regular adjustments to equipment settings are essential to prevent sediment buildup and ensure smooth transport.
Pump Power and Suction Capability
The pump size and suction capability are critical factors in achieving high dredging efficiency. Matching the pump size and type to the sand composition and transport distance ensures optimal performance. For example, river sand dredging equipment must be equipped with high-powered pumps to handle the challenging conditions of fast-moving water and larger sand particles. Powerful pumps enhance material recovery rates by maintaining strong suction even in deeper or more compacted sediment layers. High suction power also prevents clogs and increases the flow of materials, improving overall efficiency and reducing the likelihood of downtime.
Pipeline Design and Material
The pipeline system plays a key role in slurry transport. Pipeline length, diameter, and material selection directly affect how efficiently sediment is moved from the dredging site to its disposal or storage area. Longer pipelines require more pump power to maintain consistent pressure and flow. The diameter of the pipeline must be appropriately sized to handle the amount of material being transported without causing blockages. Using wear-resistant materials, especially in areas prone to abrasion, helps increase the lifespan of the pipeline and reduces maintenance costs. For instance, lake dredging equipment often uses specialized pipeline materials designed for shallow water environments where fine sediments and organic materials are common.
Water Depth and Environmental Conditions
Water depth and environmental conditions, such as river currents or lake depth, directly impact dredging efficiency. In rivers, strong currents can cause sediment to shift rapidly, requiring more power from the dredging system to maintain suction and material transport. Adjusting the dredging speed and suction power to suit these varying conditions is crucial for maintaining flow efficiency. Similarly, lake dredging equipment operates in stiller waters, where depth variations may require different suction settings. By fine-tuning the equipment for specific environmental conditions, dredging operations can be optimized for maximum efficiency and reduced operational strain.

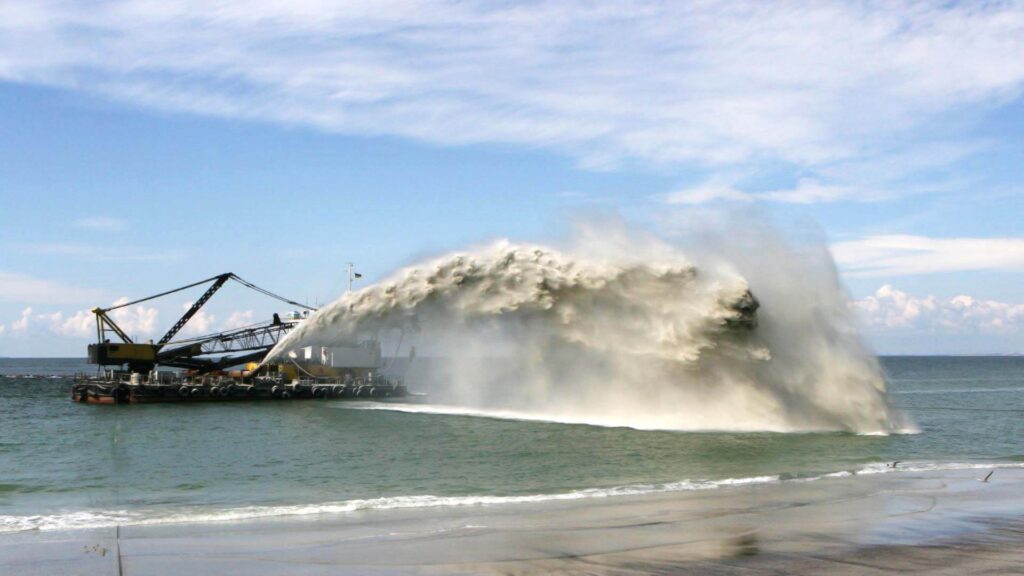

Challenges in High-Volume Sand Dredging and How to Overcome Them
Abrasive Wear and Corrosion
One of the most significant challenges in high-volume sand dredging is the abrasive nature of sand. As sand particles move through the system, they create friction that can cause significant wear on key components such as pumps, impellers, and pipelines. This abrasion leads to the degradation of equipment, reducing its efficiency and increasing maintenance costs. To mitigate this, sand dredging equipment is often coated with wear-resistant materials like rubber linings or ceramic coatings that protect the surfaces from erosion. These materials help extend the lifespan of the equipment, reduce downtime, and lower overall operational costs. For river sand dredging equipment, the added challenge of varying sediment types and larger sand particles increases wear, so specialized materials and protective coatings are essential. For lake dredging equipment, where fine sand and organic matter are common, using corrosion-resistant materials helps prevent rust and maintain long-term operational performance.
Clogging and Blockages
Another common challenge in high-volume sand dredging is the potential for pipeline and pump blockages. Fine sand, mixed with organic debris and other materials, can accumulate and clog the system, reducing suction power and transport efficiency. Clogging may also lead to equipment overheating or pump failure. To address this, regular inspection and cleaning of the pipeline are necessary. Using high-efficiency pumps with self-cleaning capabilities and ensuring that the pipeline is properly sized for the type of sediment being dredged can reduce blockages. For river sand dredging equipment, where strong currents and varying sediment types are common, maintaining a consistent flow rate and using specialized pumps can prevent clogs. Similarly, lake dredging equipment can benefit from regularly adjusting suction power and flow rate to keep sediment suspended and avoid blockages in shallow water areas.
Sediment Settling and Separation
Low flow rates can cause sediment to settle in pipelines, leading to reduced transport efficiency and possible blockages. Maintaining the proper balance between suction power and flow rate is critical to keeping the sand in suspension. Adjusting the dredging equipment’s settings based on sediment type and transport distance helps ensure that sediment remains in motion, preventing it from settling. For sand dredging equipment, especially in lake dredging equipment scenarios, proper flow control is crucial to prevent fine sediments from settling too quickly, which can hinder the dredging process. For river sand dredging equipment, managing flow rates based on fluctuating water levels and currents helps keep the sediment moving efficiently.
Environmental Impact and Compliance
Dredging operations can have significant environmental consequences, particularly when it comes to turbidity and sediment disturbance. High turbidity can negatively impact aquatic life by reducing light penetration and oxygen levels. Managing these effects is crucial for maintaining the health of ecosystems. Implementing measures like silt curtains, sedimentation basins, and controlling the dredging speed can reduce turbidity during dredging. Additionally, ensuring compliance with environmental regulations and sediment discharge permits is essential for avoiding legal issues and minimizing environmental impact. For river sand dredging equipment, where water quality can be more easily impacted by sediment disturbance, proper monitoring and adherence to environmental guidelines are necessary to protect aquatic ecosystems.
Conclusion
Optimizing sand dredging equipment for high-volume sediment removal requires careful consideration of factors like sand composition, pump power, pipeline design, and environmental conditions. Selecting the right sand dredging equipment is crucial, as different types of sediment and water conditions in river and lake environments require specialized tools. For river sand dredging equipment, handling varying currents and sediment types demands powerful, durable equipment, while lake dredging equipment requires precision and stability for managing fine materials.
Proper maintenance, calibration, and regular monitoring of the equipment are essential to ensuring consistent performance. Regularly adjusting suction power and flow rates and maintaining equipment with wear-resistant coatings reduce downtime and extend its lifespan. These measures not only improve efficiency but also reduce long-term operational costs, ensuring the success of high-volume dredging projects.
